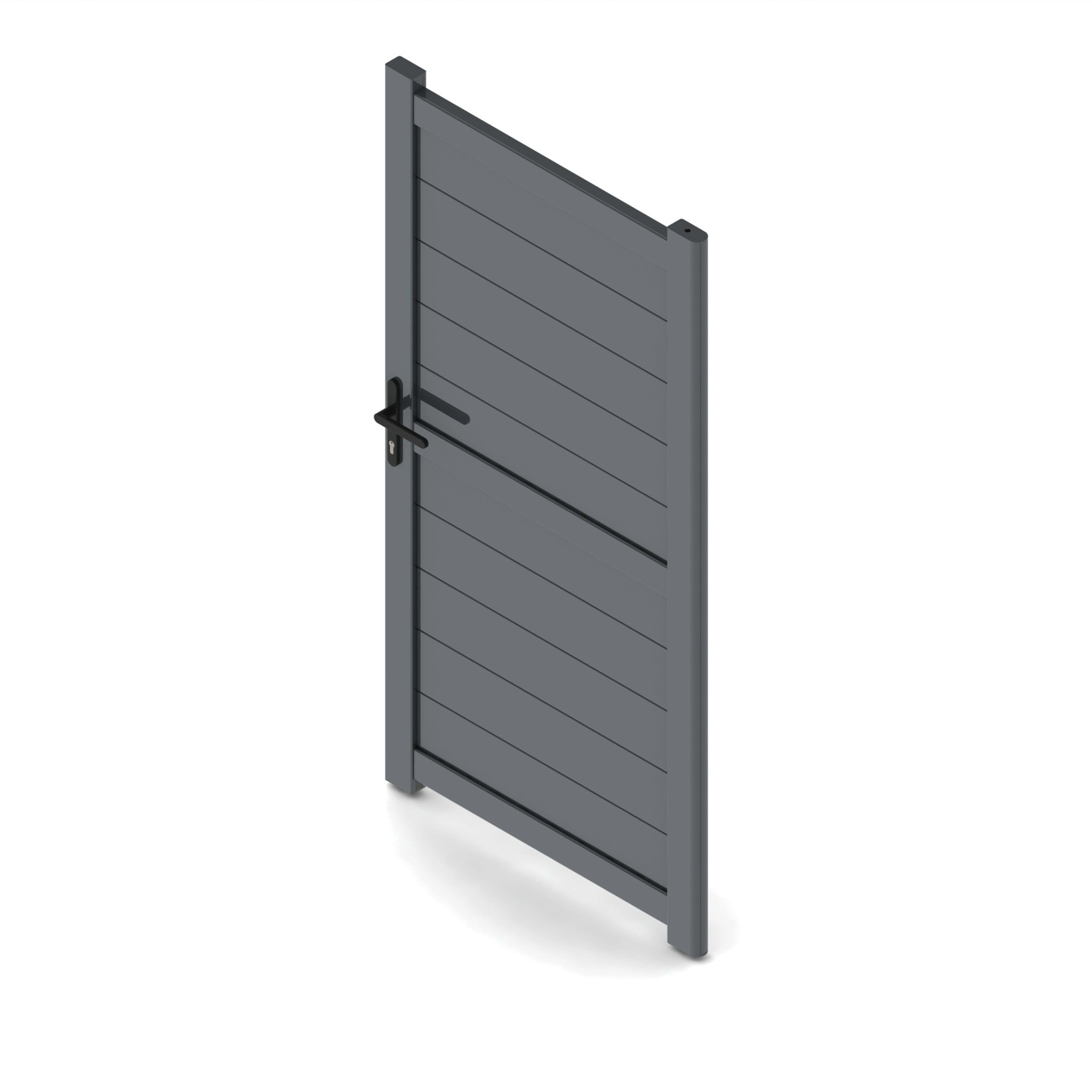

HorizonLine | Aluminium Horizontal Slat Garden Gate

HorizonLine | Aluminium Horizontal Slat Garden Gate

Free UK mainland shipping. Shipping takes a estimated 14 working days.

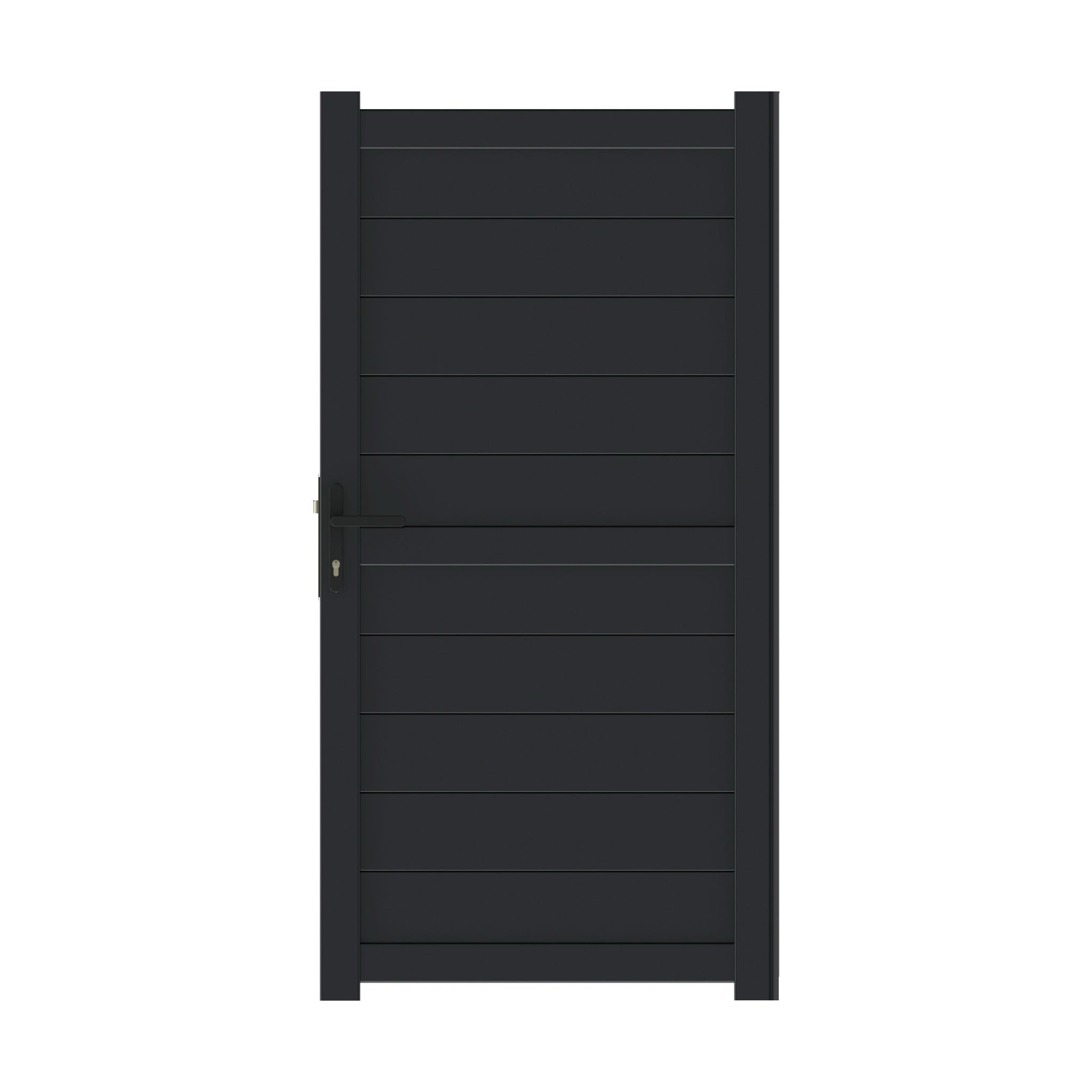

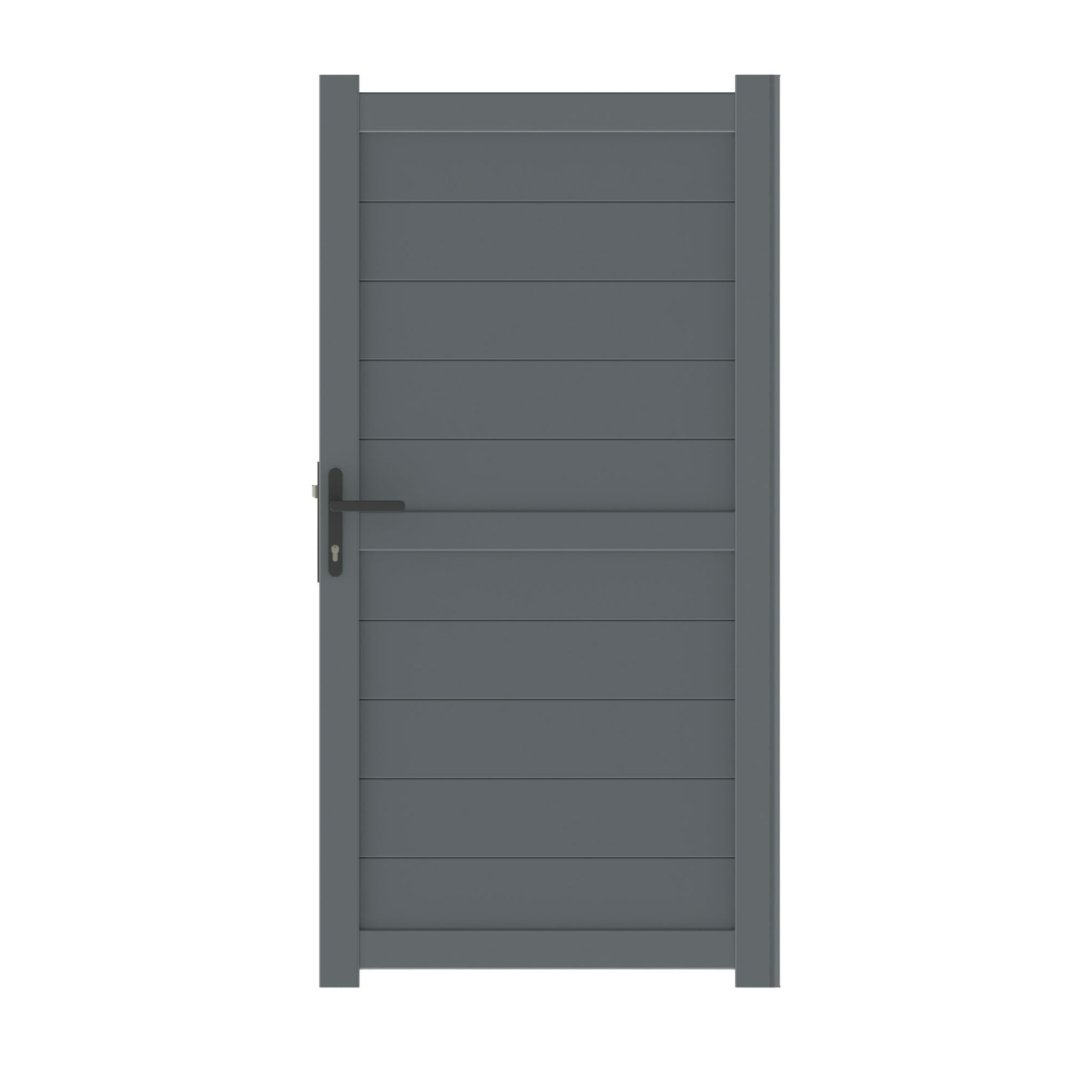

The HorizonLine Aluminium Horizontal Slat Garden Gate is an exemplary ready made gate solution. Made from robust aluminium, it features horizontal slats and a flat top, providing a contemporary look and complete privacy for your garden, all while ensuring easy installation.

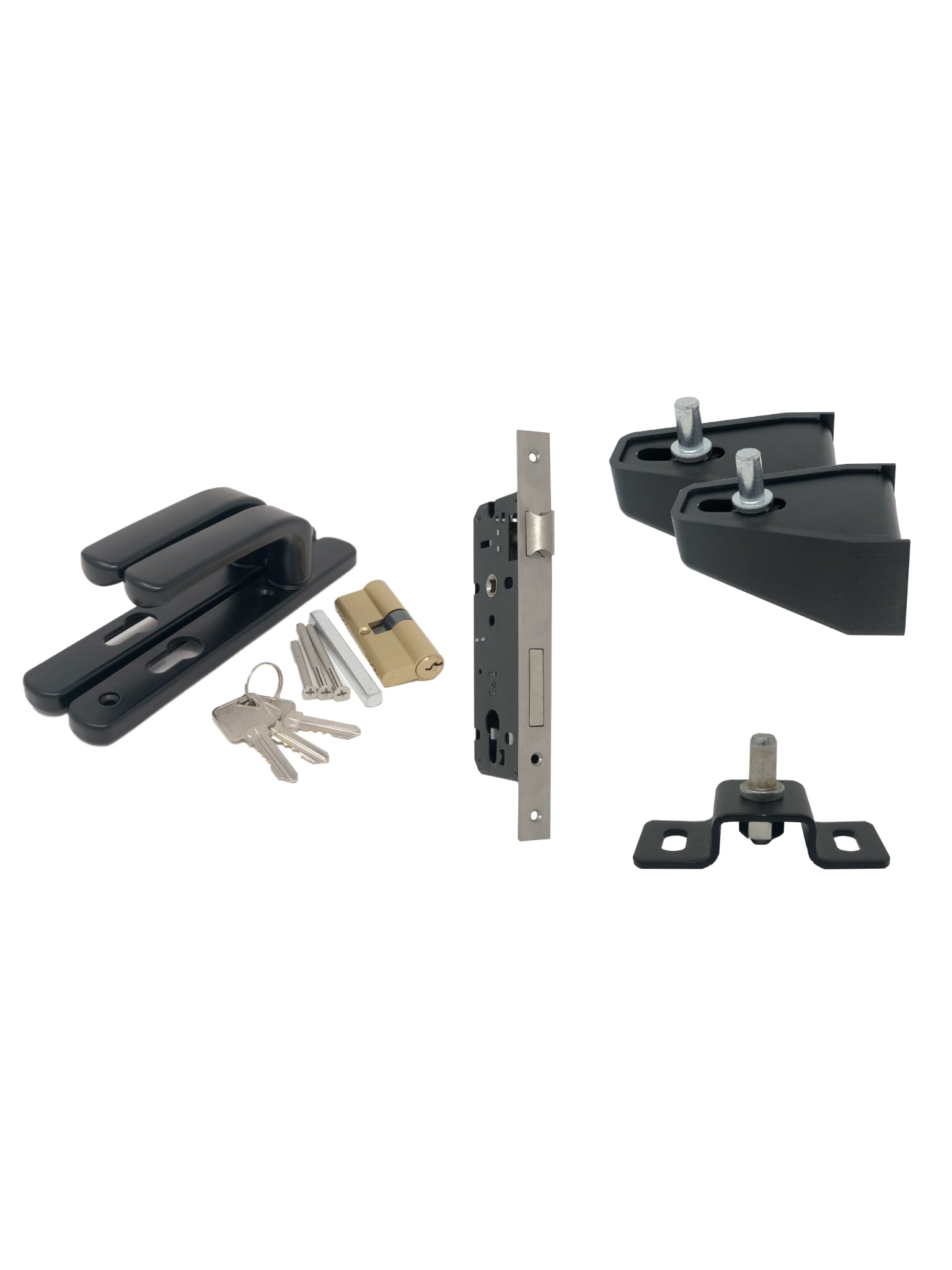

Includes: 2 x Adjustable wall hinges, 1 x Floor mounted hinge, 1 x Gate handle set inc. lock with 3 keys and 1 x Full height lock keep receiver.

SKU: RMG002PGL-29

Gate size (Width x Height)

Colour

Custom width

Free UK mainland shipping. Shipping takes a estimated 21 working days.


In the Gate Size dropdown above, please select the next size up from the custom width you require, then enter your new size (in mm) in the field below. Our gate heights come as standard and are not adjustable.

Regular price £360.00 GBP
Regular price £444.00 GBP Sale price £360.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

How to Measure And Install Your Garden Gate.

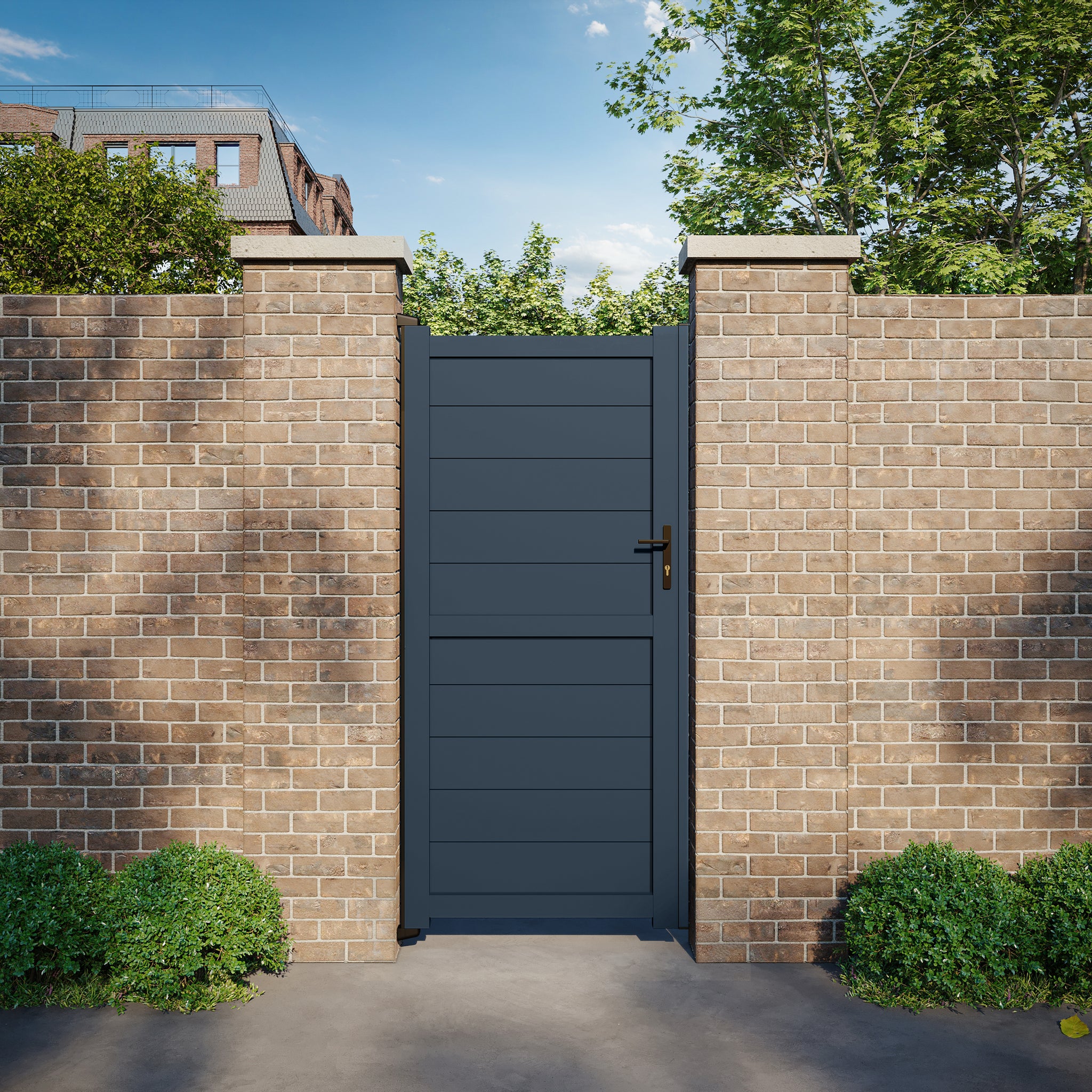

Gate Installation Between Wall to Wall Opening, Wall to Existing Post or Existing Post to Post.

*The standard gate sizes are the exact size of gate*

  • Width: Ensure that the opening is 25-35mm wider than the gate's standard width to allow 5-15mm for the hinge side and 20mm for the lock keep receiver.
  • Height: Make sure the walls or posts are at least 100mm taller than the gate's standard height to allow 50mm for the top hinge and 50mm for the bottom hinge.

> CLICK HERE TO VIEW DIMENSION PDF.

> CLICK HERE TO VIEW STEP-BY-STEP INSTALLATION GUIDE.

Gate Installation Between Wall and Aluminium Post.

*The standard gate sizes are the exact size of gate*

100mm Post:

  • Width: Ensure that the opening is 125-135mm wider than the gate's standard width to provide 100mm for the aluminium post and 5-15mm for the hinge side and 20mm for the lock keep receiver.
  • Height: Make sure the wall and the aluminium post are at least 100mm taller than the gate's standard height to allow 50mm for the top hinge and 50mm for the bottom hinge.

150mm Post:

  • Width: Ensure that the opening is 175-185mm wider than the gate's standard width to provide 150mm for the aluminium post and 5-15mm for the hinge side and 20mm for the lock keep receiver.
  • Height: Make sure the wall and the aluminium post are at least 100mm taller than the gate's standard height to allow 50mm for the top hinge and 50mm for the bottom hinge.

> CLICK HERE TO VIEW DIMENSION PDF.

> CLICK HERE TO VIEW STEP-BY-STEP INSTALLATION GUIDE.

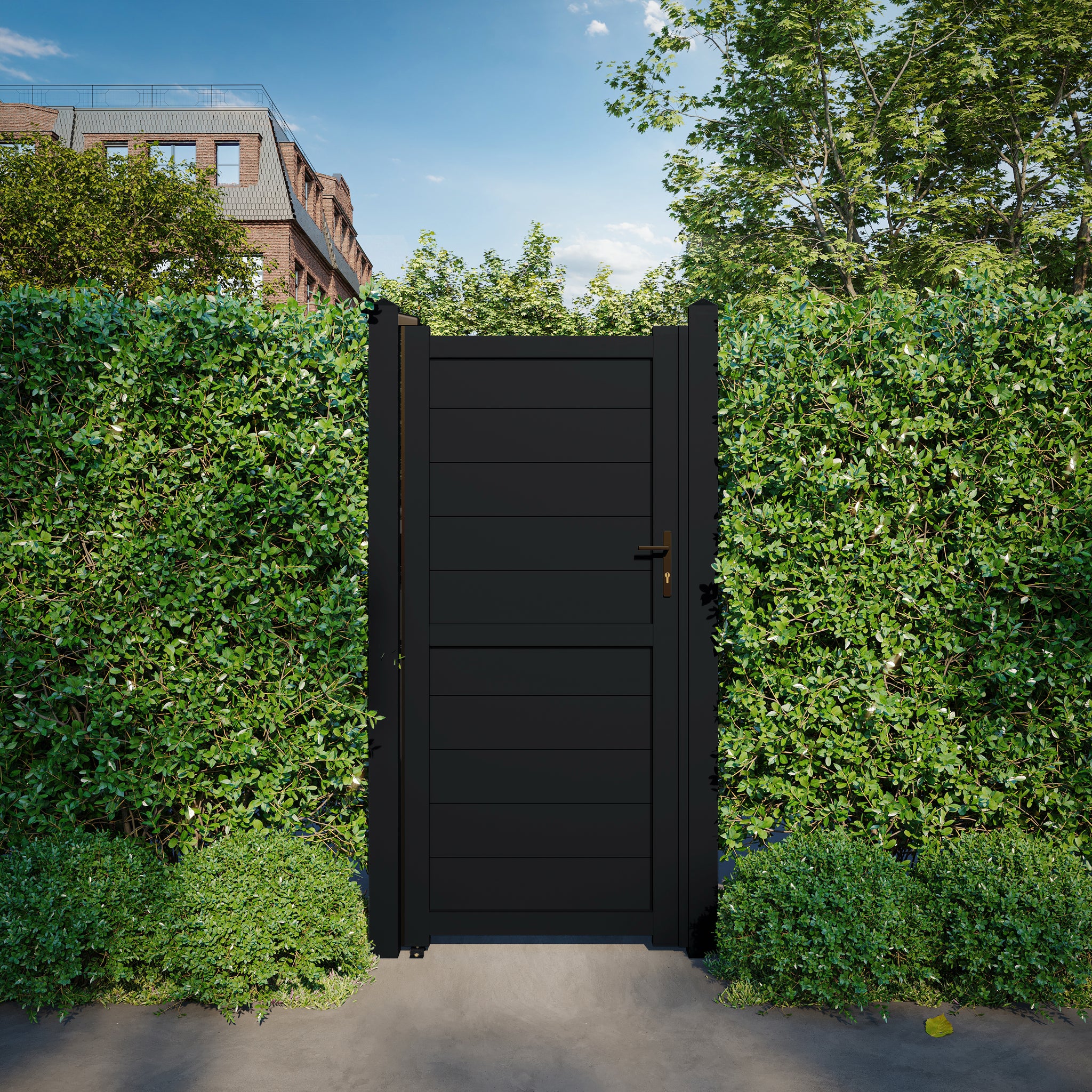

Gate Installation Between Aluminium Posts.

*The standard gate sizes are the exact size of gate*

100mm Posts:

  • Width: Ensure that the opening is 225-235mm wider than the gate's standard width to provide for 2 x 100mm for the aluminium posts and 5-15mm for the hinge side and 20mm for the lock keep receiver.
  • Height: Make sure the aluminium posts are at least 100mm taller than the gate's standard height to allow 50mm for the top hinge and 50mm for the bottom hinge.

150mm Posts:

  • Width: Ensure that the opening is 325-335mm wider than the gate's standard width to provide for 2 x 150mm for the aluminium posts and 5-15mm for the hinge side and 20mm for the lock keep receiver.
  • Height: Make sure the aluminium posts are at least 100mm taller than the gate's standard height to allow 50mm for the top hinge and 50mm for the bottom hinge.

> CLICK HERE TO VIEW DIMENSION PDF.

> CLICK HERE TO VIEW STEP-BY-STEP INSTALLATION GUIDE.

Gate Installation Using Aluminium Surface Posts Between Wall to Wall Opening, Wall to Existing Post, or Existing Post to Post.

*The standard gate sizes are the exact size of gate*

  • Width: Ensure that the opening is 120mm wider than the gate's standard width to provide 50mm for each surface post and 20mm for the hinge and lock keep receiver.
  • Height: Make sure the walls, existing posts and surface posts are at least 100mm taller than the gate's standard height to allow 50mm for the top hinge and 50mm for the bottom hinge.

> CLICK HERE TO VIEW STEP-BY-STEP INSTALLATION GUIDE.

1 of 5

Frequently Asked Questions.

Can the gates be hung left or right-handed?

Yes, our gates are designed to be universal, allowing for flexibility in hanging direction. There are no specific left or right-handed gates. To hang the gate in the desired direction, please follow these steps:

  1. Turn the Handle: The handle on the gate can be turned 180 degrees to face the correct way. This adjustment will ensure that the handle operates in the direction you prefer.
  2. Lock Keep Receiver: Similarly, the lock keep receiver should be turned 180 degrees to align with the handle, ensuring proper locking and unlocking.

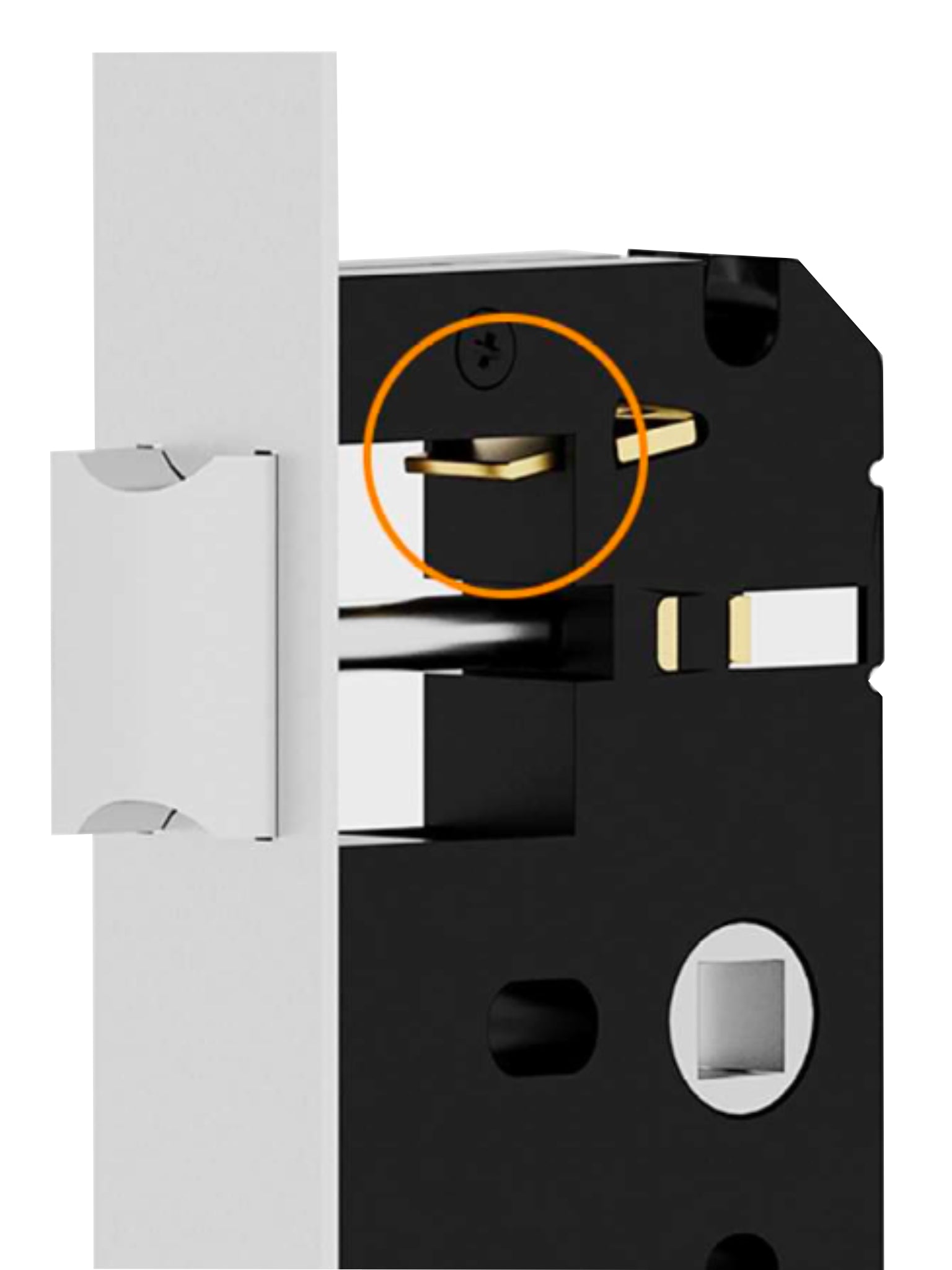

  3. Latch Adjustment: To change the direction of the latch, avoid unscrewing the locking mechanism. Instead, press the release catch on the mechanism to release and turn the latch 180 degrees.

These adjustments can be made during the installation process to ensure that the gate opens and closes in the direction that best suits your needs. For detailed step-by-step instructions and visual aids, please refer to the fitting instructions available on the product page.

Can I fit a combination lock to the gates?

The standard lock supplied with our garden gates is a handle set with keys, featuring a standard euro cylinder with a length of 70mm and a 50/50 split. While this lock provides secure and reliable functionality, it is designed for use with keys.

Unfortunately, our gates are not configured to accommodate combination locks as standard.

Can I use two garden gates as a pair?

While using two garden gates together may seem like an option for creating a double opening pair, this is not possible. We recommend a more suitable solution for side entrances.

The best way to achieve a double opening pair of gates for your side entrance is by customising a set of driveway gates. This allows us to modify the widths to any size you require, ensuring a perfect fit for your specific opening. Custom driveway gates are designed for this purpose and provide a cohesive and functional solution for side entrances.

Customisation offers the advantage of tailoring the gates precisely to your needs, ensuring they complement your property's aesthetic while delivering the desired functionality.

What thickness are the garden gates?

Our garden gates have a standard thickness of 45mm, providing a sturdy and secure structure for your property.

To access detailed dimensions and specifications for each gate model, we recommend visiting the product page on our website. On each product page, you will find a downloadable PDF dimension drawing that provides comprehensive information about the gate's size, shape, and other important measurements. These dimension drawings are invaluable for ensuring that the gate will fit your specific installation requirements.

Here's how to find the dimension drawing:

  1. Navigate to the Product Page: Go to the product page of the gate you are interested in.
  2. Locate the Dimension Drawing: Look for the 'Dimension Drawing' section, usually found below the product description. Click on the link to open or download the PDF file.

I have an opening wider than your widest standard garden gate size?

If your gate opening exceeds our widest standard gate size of 1200mm, and adding posts would not adequately fulfill your requirements, we have a solution for you. We can arrange for factory-ordered gates to be customised to the exact width you need.

To initiate the process for factory-ordered gates, please click here to access our custom order request form. This form will allow you to provide us with the specific dimensions and details of your gate requirements. Once we receive your request, our team will work closely with you to ensure that the gates are tailored to your precise needs.

What are the floor-mounted hinges used for?

Floor-mounted hinges are used for two purposes. Firstly, they are used when using aluminium posts as a support for the gate. Secondly, they are used when you prefer to distribute the weight of the gate onto the floor rather than solely relying on the wall for support.
