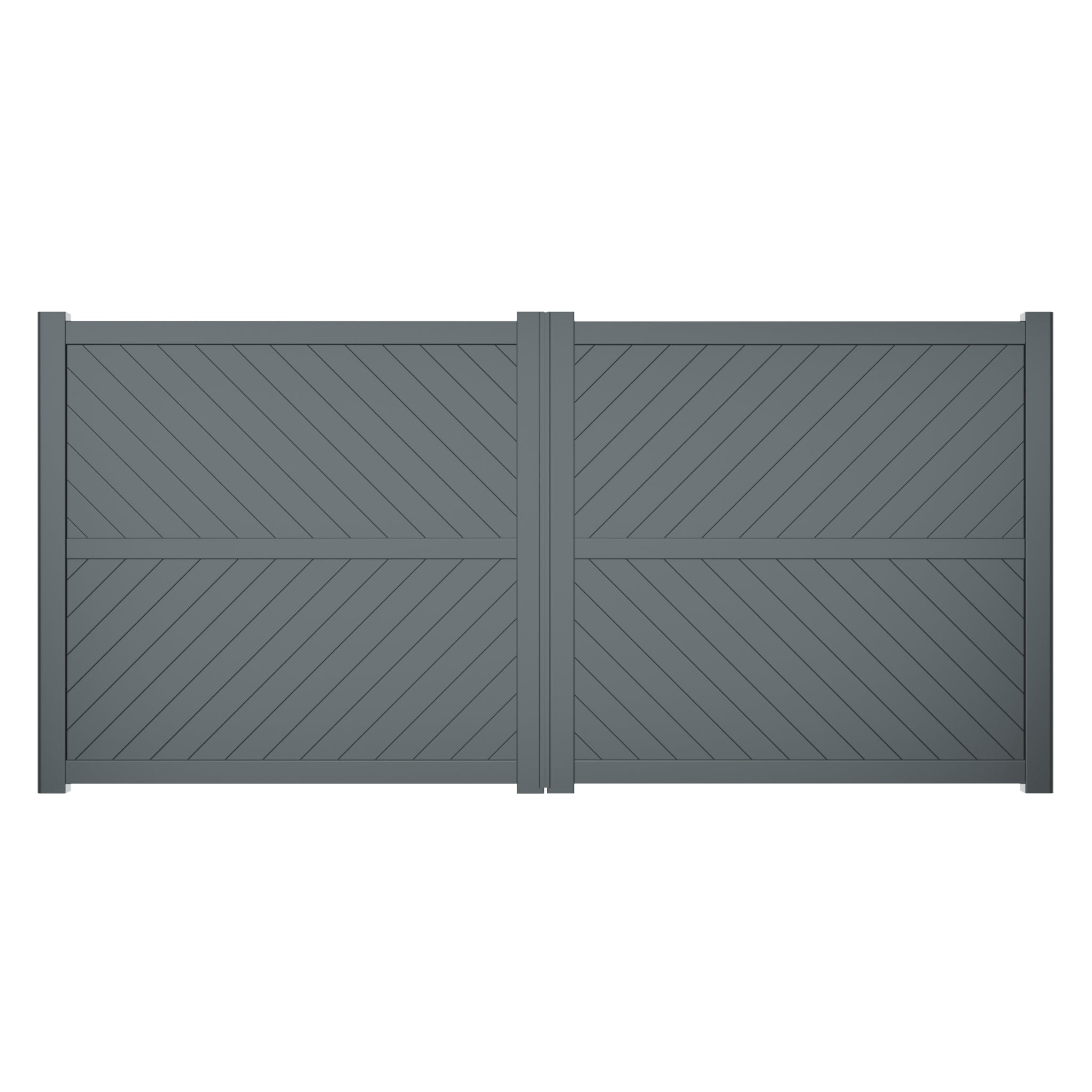

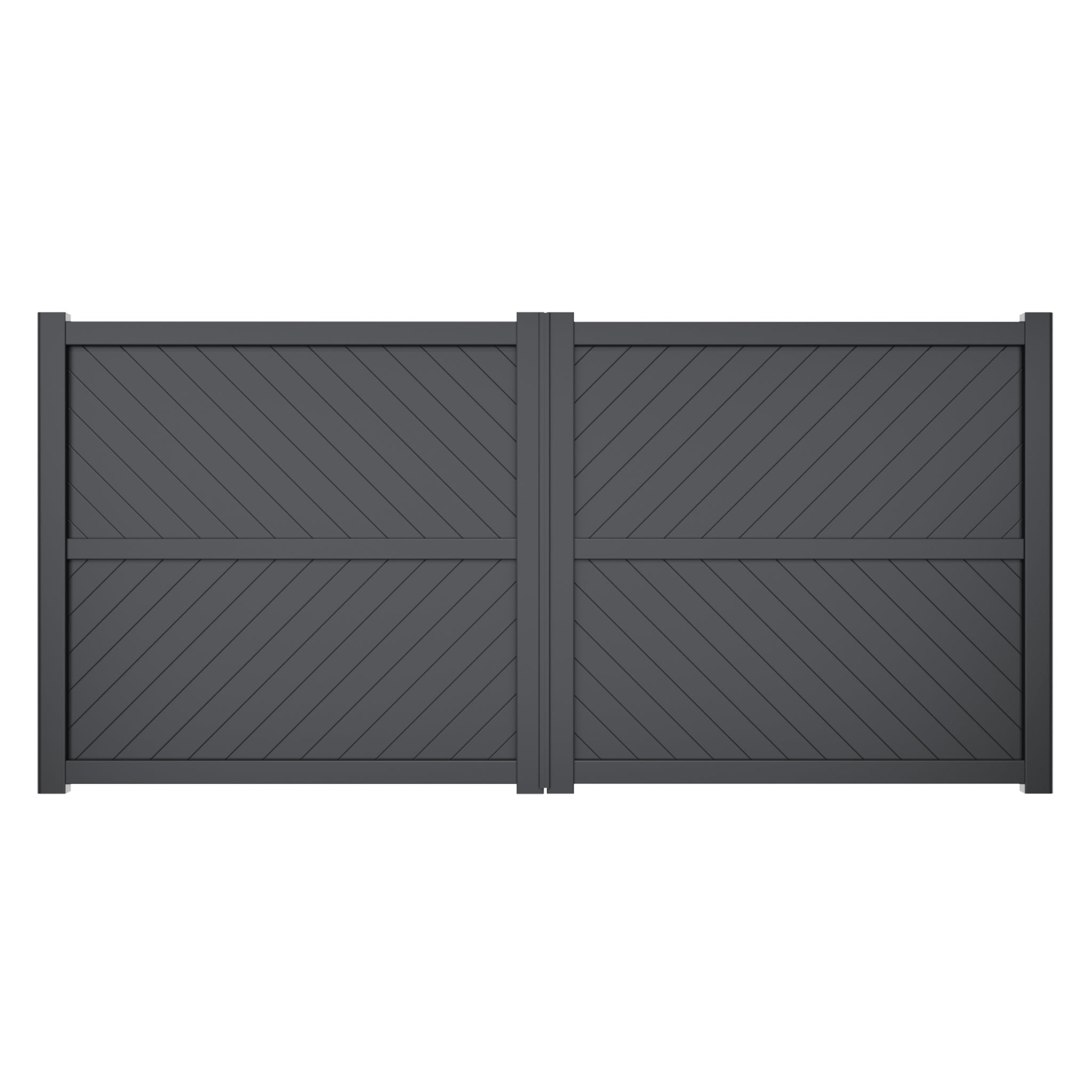

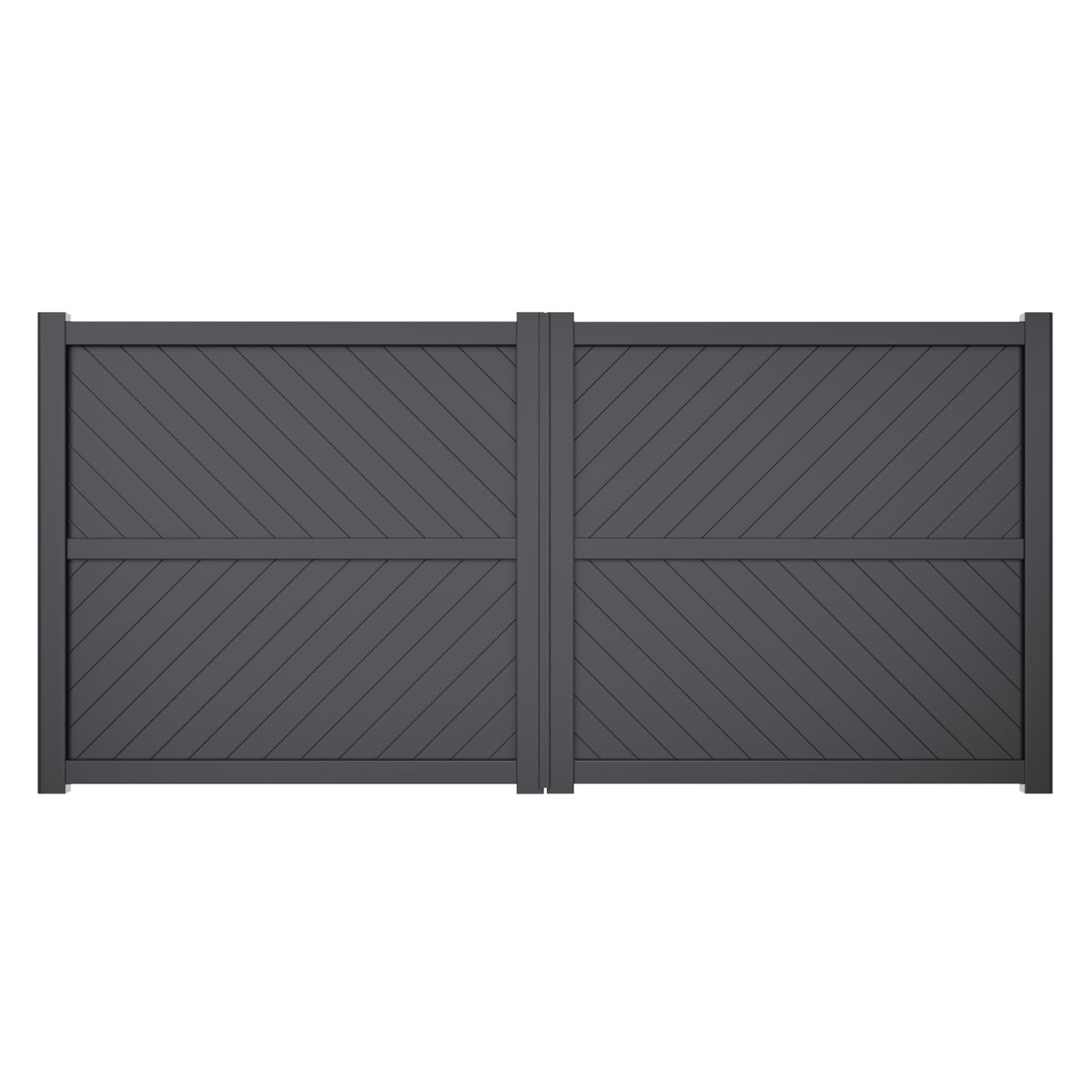

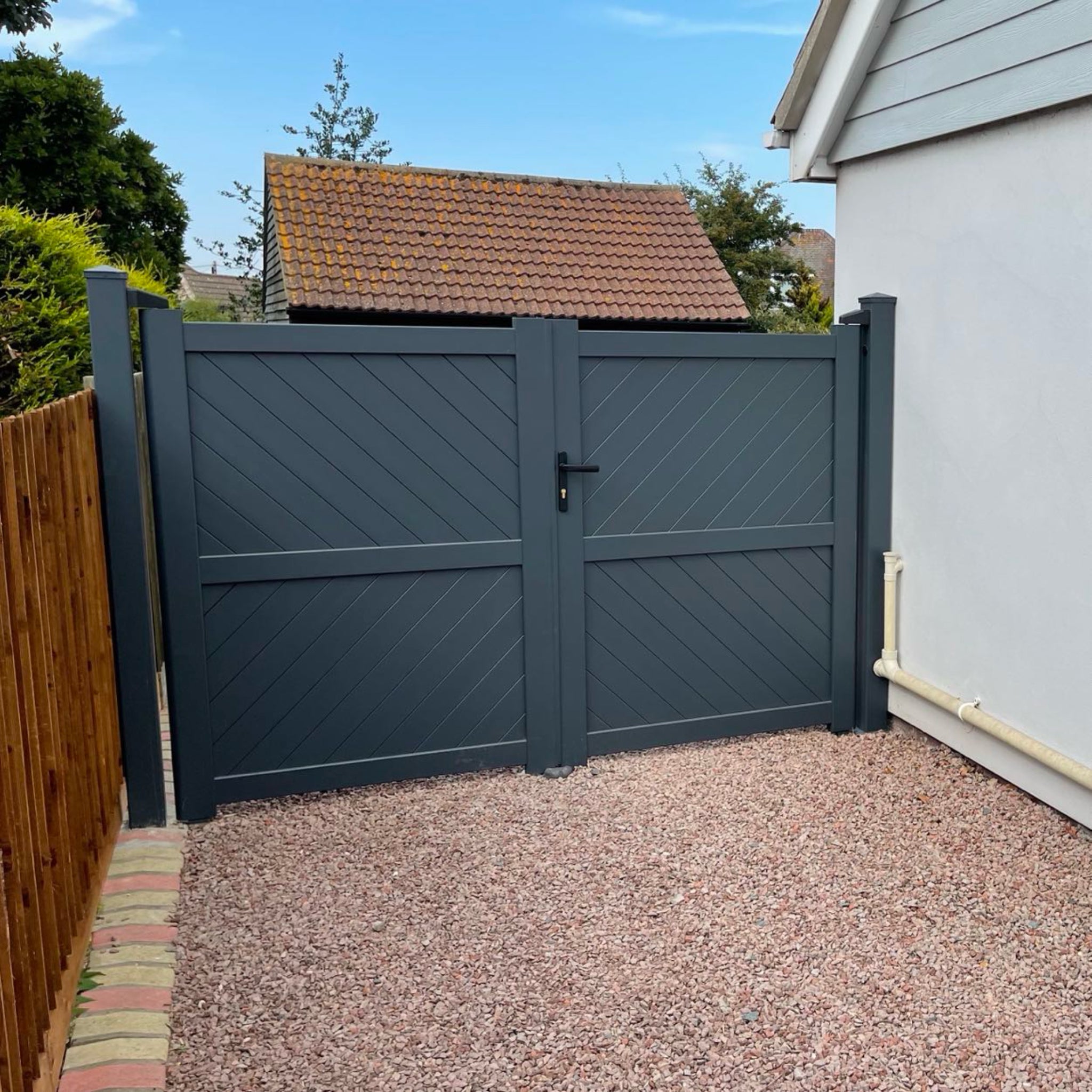

DiagonalElegance | Aluminium Full Privacy Diagonal Slat Driveway Gate

DiagonalElegance | Aluminium Full Privacy Diagonal Slat Driveway Gate

Free UK mainland shipping. Shipping takes a estimated 14 working days.

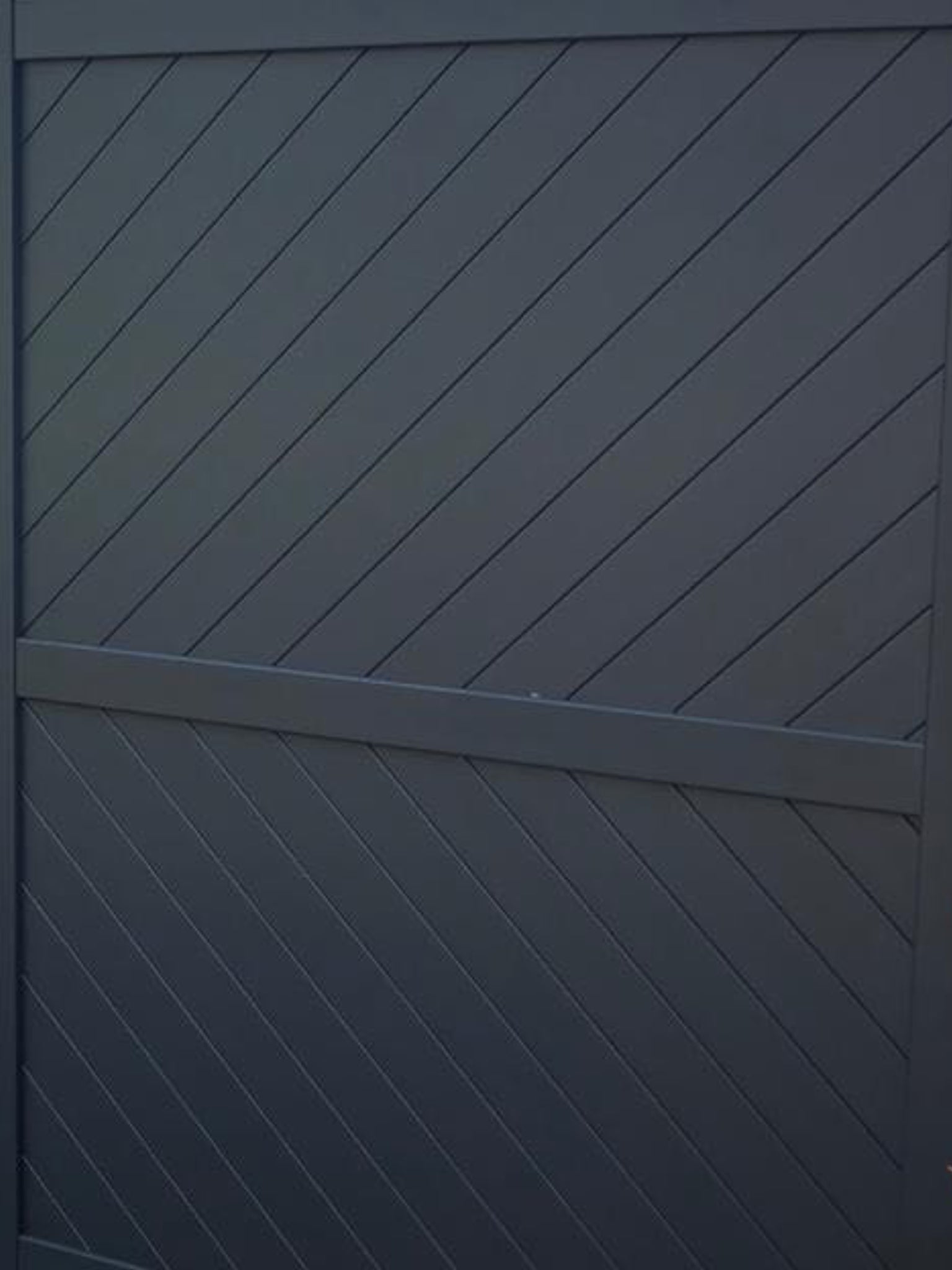

DiagonalElegance Aluminium Full Privacy Diagonal Slat Driveway Gate is an artistic and practical choice in our ready-made gates range. This gate features a unique diagonal slat design in durable aluminium, offering full privacy and a distinctive style for your driveway entrance.

Includes: 4 x Adjustable wall hinges, 2 x Floor mounted hinges.

SKU: RMG003DG-01

Gate size (Width x Height)

Colour

Custom width

Free UK mainland shipping. Shipping takes a estimated 21 working days.


In the Gate Size dropdown above, please select the next size up from the custom width you require, then enter your new size (in mm) in the field below. Our gate heights come as standard and are not adjustable.

Regular price £1,200.00 GBP
Regular price £1,449.00 GBP Sale price £1,200.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

How to Measure And Install Your Driveway Gate.

Gate Installation Between Wall to Wall Opening, Wall to Existing Post or Existing Post to Post.

*The standard gate sizes are the exact size of gate*

  • Width: Ensure that the opening is 15-60mm wider than the gate's standard width to allow 5-25mm for the hinge on each side and 5-10mm clearance between gate leafs to ensure they close nicely together.
  • Height: Make sure the walls or posts are at least 100mm taller than the gate's standard height to allow 50mm for the top hinge and 50mm for the bottom hinge.

> CLICK HERE TO VIEW DIMENSION PDF.

> CLICK HERE TO VIEW STEP-BY-STEP INSTALLATION GUIDE (Using Adjustable Wall Hinges).

> CLICK HERE TO VIEW STEP-BY-STEP INSTALLATION GUIDE (Using Floor Mounted Hinges).

Gate Installation Between Wall and Aluminium Post.

*The standard gate sizes are the exact size of gate*

100mm Post:

  • Width: Ensure that the opening is 115-160mm wider than the gate's standard width to provide 100mm for the aluminium post and 5-25mm for the hinge on each side and 5-10mm clearance between gate leafs to ensure they close nicely together.
  • Height: Make sure the wall and the aluminium post are at least 100mm taller than the gate's standard height to allow 50mm for the top hinge and 50mm for the bottom hinge.

150mm Post:

  • Width: Ensure that the opening is 165-210mm wider than the gate's standard width to provide 150mm for the aluminium post and 5-25mm for the hinge on each side and 5-10mm clearance between gate leafs to ensure they close nicely together.
  • Height: Make sure the wall and the aluminium post are at least 100mm taller than the gate's standard height to allow 50mm for the top hinge and 50mm for the bottom hinge.

> CLICK HERE TO VIEW DIMENSION PDF.

> CLICK HERE TO VIEW STEP-BY-STEP INSTALLATION GUIDE.

Gate Installation Between Aluminium Posts.

*The standard gate sizes are the exact size of gate*

100mm Posts:

  • Width: Ensure that the opening is 215-260mm wider than the gate's standard width to provide for 2 x 100mm for the aluminium posts and 5-25mm for the hinge on each side and 5-10mm clearance between gate leafs to ensure they close nicely together.
  • Height: Make sure the aluminium posts are at least 100mm taller than the gate's standard height to allow 50mm for the top hinge and 50mm for the bottom hinge.

150mm Posts:

  • Width: Ensure that the opening is 315-360mm wider than the gate's standard width to provide for 2 x 150mm for the aluminium posts and 5-25mm for the hinge on each side and 5-10mm clearance between gate leafs to ensure they close nicely together.
  • Height: Make sure the aluminium posts are at least 100mm taller than the gate's standard height to allow 50mm for the top hinge and 50mm for the bottom hinge.

> CLICK HERE TO VIEW DIMENSION PDF.

> CLICK HERE TO VIEW STEP-BY-STEP INSTALLATION GUIDE.

1 of 5

Frequently Asked Questions.

How do I know the right size gate for my driveway opening?

Selecting the correct size gate for your space is essential for both the functionality and aesthetics of the installation. To ensure you choose the right size, we've provided a detailed sizing guide on each product page on our website. Here's a brief overview of what to consider:

Width:

  • Measure Your Opening: Start by measuring the width of your gate opening.
  • Add the Required Clearance: The total width of the opening should be 20-60mm wider than the standard width size of our gates. This extra space accounts for 5-25mm on each side for the hinges and an additional 10mm clearance between the gate leafs, ensuring they close properly without any obstruction.

Height:

  • Measure Your Opening Height: Measure the height from the ground to the top of the opening.
  • Include Space for Hinges: The total height of the opening needs to be at least 100mm higher than the standard height of the gate. This allows for 50mm space at the top and 50mm at the bottom for the hinges, ensuring the gate can swing freely without touching the ground.

Following these guidelines will help you determine the appropriate size for your gate, ensuring a perfect fit and smooth operation. For detailed instructions and visual aids on how to measure your opening correctly, please refer to the sizing guide available on the product page of the gate you are interested in.

Can the driveway gates be automated?

Absolutely! Our driveway gates are designed to be compatible with various types of automation systems, including both underground motors and overground operators. This flexibility allows you to choose the automation solution that best fits your needs and preferences.

While our gates are ready to accommodate any standard automation system, please note that we do not stock or supply automation products directly. We recommend consulting with a professional automation supplier or installer to select the appropriate automation system for your gate. They can provide you with expert advice on the best type of automation for your specific gate model and installation environment.

I have an opening wider than your widest standard driveway gate size?

If your gate opening exceeds our widest standard gate size of 4000mm, and adding posts would not adequately fulfill your requirements, we have a solution for you. We can arrange for factory-ordered gates to be customised to the exact width you need.

To initiate the process for factory-ordered gates, please click here to access our custom order request form. This form will allow you to provide us with the specific dimensions and details of your gate requirements. Once we receive your request, our team will work closely with you to ensure that the gates are tailored to your precise needs.

What thickness are the driveway gates?

Our driveway gates have a standard thickness of 55mm, providing a sturdy and secure structure for your property.

To access detailed dimensions and specifications for each gate model, we recommend visiting the product page on our website. On each product page, you will find a downloadable PDF dimension drawing that provides comprehensive information about the gate's size, shape, and other important measurements. These dimension drawings are invaluable for ensuring that the gate will fit your specific installation requirements.

Here's how to find the dimension drawing:

Do you stock sliding gates?

At this time, we do not offer sliding gates as part of our current product lineup. However, we understand that sliding gates are a valuable and practical choice for many customers, and we are actively working on expanding our product offerings to include sliding gates in the future.

What are the floor-mounted hinges used for?

Floor-mounted hinges are used for two purposes. Firstly, they are used when using aluminium posts as a support for the gate. Secondly, they are used when you prefer to distribute the weight of the gate onto the floor rather than solely relying on the wall for support.
